J30JB-9TJL-Q9 Glass sintered gas sealed rectangular electrical connector
THE J30JB SERIES CONNECTOR FEATURES:
- Product characteristics
■ Specifications are 5, 9, 11, 13, 15, 21, 25, 31, 37 core nine specifications
■ Twisted wire twist needle, contact spacing is 1.27mm, row spacing is 1.1mm.
■ Product features: high density, miniaturization, high reliability
■ Wire suitable for 0.1mm2 ~ 0.15mm2
■ The product performance meets the requirements of GJB2446, equivalent to the US military standard MIL-DT-83513
■ Implementation standards
Technical characteristics
■ Ambient temperature: -55℃ ~ +125℃
■ Vibration: 10Hz ~ 2000Hz 196m/s2
■ Random vibration: power spectral density 0.4G2/Hz total speed root mean square value of 23.1G
■ Impact: 735m/s2 11ms
■ Rated current: 3A
■ Contact resistance: ≤10mΩ
■ Insulation resistance: ≥5000MΩ 500VDC
■ Medium voltage: 600V
■ Mechanical life: 500 times

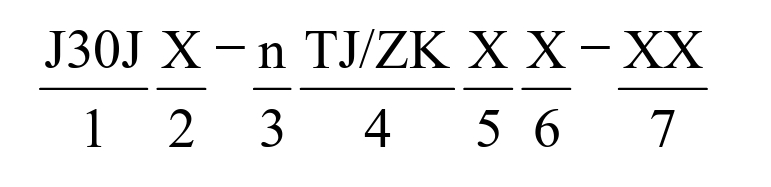

How to order:
① Main name code :J30J
② Series modification: B- matching plug with glass sintering
M1- glass sintering gas seal type
③ Number of contact parts :5, 9, 11, 13, 15, 21, 25, 31, 37
④ Types of connectors and contacts:
TJ A plug insert pin TK- Plug insert jack
ZK- Socket jack ZJ- Seat pin
⑤ end form:
Unmarked - crimped wire
H-welding (H, H1, H2, HY, HV9- see product outline)
N Insert the printed board
⑥ Lock type :L, L90, L24, F24, L60 (see product outline)
⑦ Series code: Q1, Q2, Q3, Q41, Q51, Q6, Q8, Q9, Q45A, Q60A (See product outline for details)
Contact layout:
Product showing:
|
|

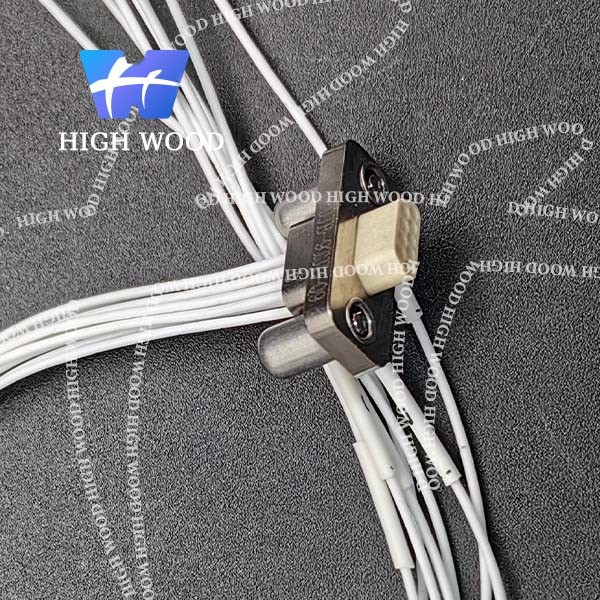

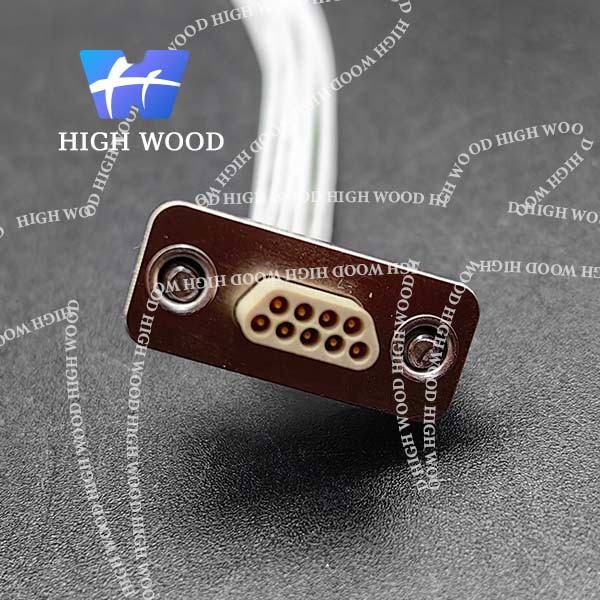

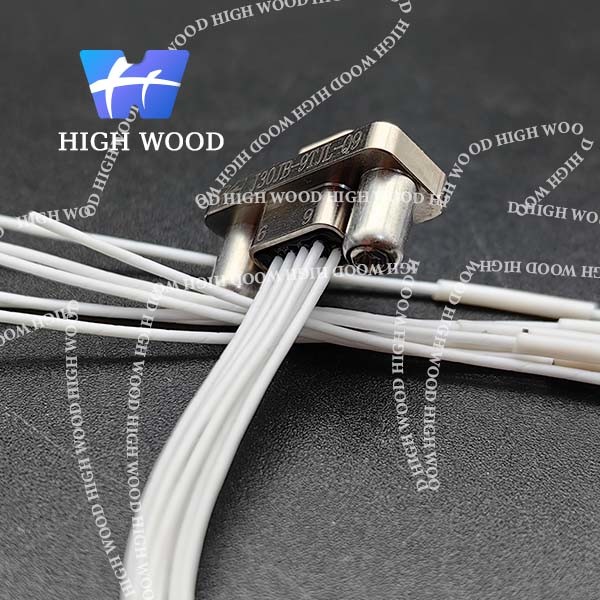

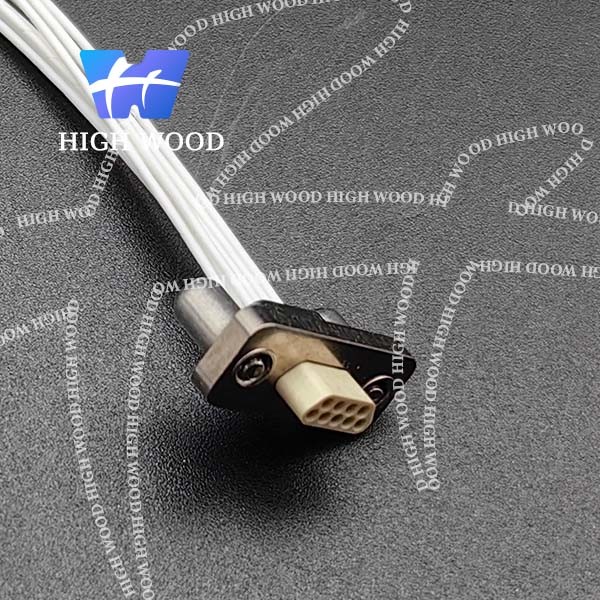

J30JB SERIES glass sintered gas sealed rectangular electrical connector, J30JB-9TJL-Q9 Images
|
